All Products >> >> Mortise Lock TS-5572ZD

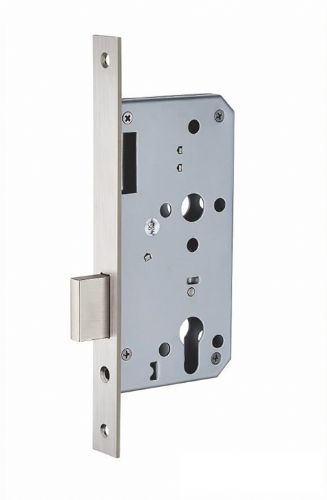

Mortise Lock TS-5572ZD

Build Your Online Product Catalogs?

Product Name: Mortise Lock TS-5572ZD
Supply Ability:
Specifications Mortise Door Lock 72 Series TS-5572ZD
Price Term:
Port of loading: Shanghai
Minimum Order
Unit Price:
You may also be interested in: door lock, lock, mortise lock,

Requirements of DIN 18251 standard. Suitable for all

kinds of wooden door, flat edge door, steel door etc.
Can be adjusted according to the use of left or right-


PANEL: Stainless steel, steel, brass.
Latch: Stainless steel, zinc alloy, brass, steel.
Strike Panel: Stainless steel, steel, brass.
Case: SECCN5 anti-mark electrolytic plate.
Screw: Stainless steel.

PANEL: 235*20/24*3mm
Pitch of holes: 72mm
Backset: 55mm
Striker: 1.5mm
Case: 1.5mm

Polished stainless steel
Brush stainless steel
Brush PVD

Corrugated box without/with logo
Seven layers corrugated carton
Box size: 24*11*2.6cm
Carton size: 58*25*23.5cm
G.W/N.W: 29/28KG

Standard accessories:
Strike Panel: 1pcs
Plastic case: 1pcs
Screw: 4pcs
